Areas of Applications
Surface Examination
breaks, cracks, cuts, holes, dents, pimples
Controlling Colors
monochrome, multicolored, gradient, rotating
Coming Soon
Check Imprints
markings, codes, lettering, serial numbers
Coming Soon
Measurement
automatic measurement of the cable diameter
Coming Soon

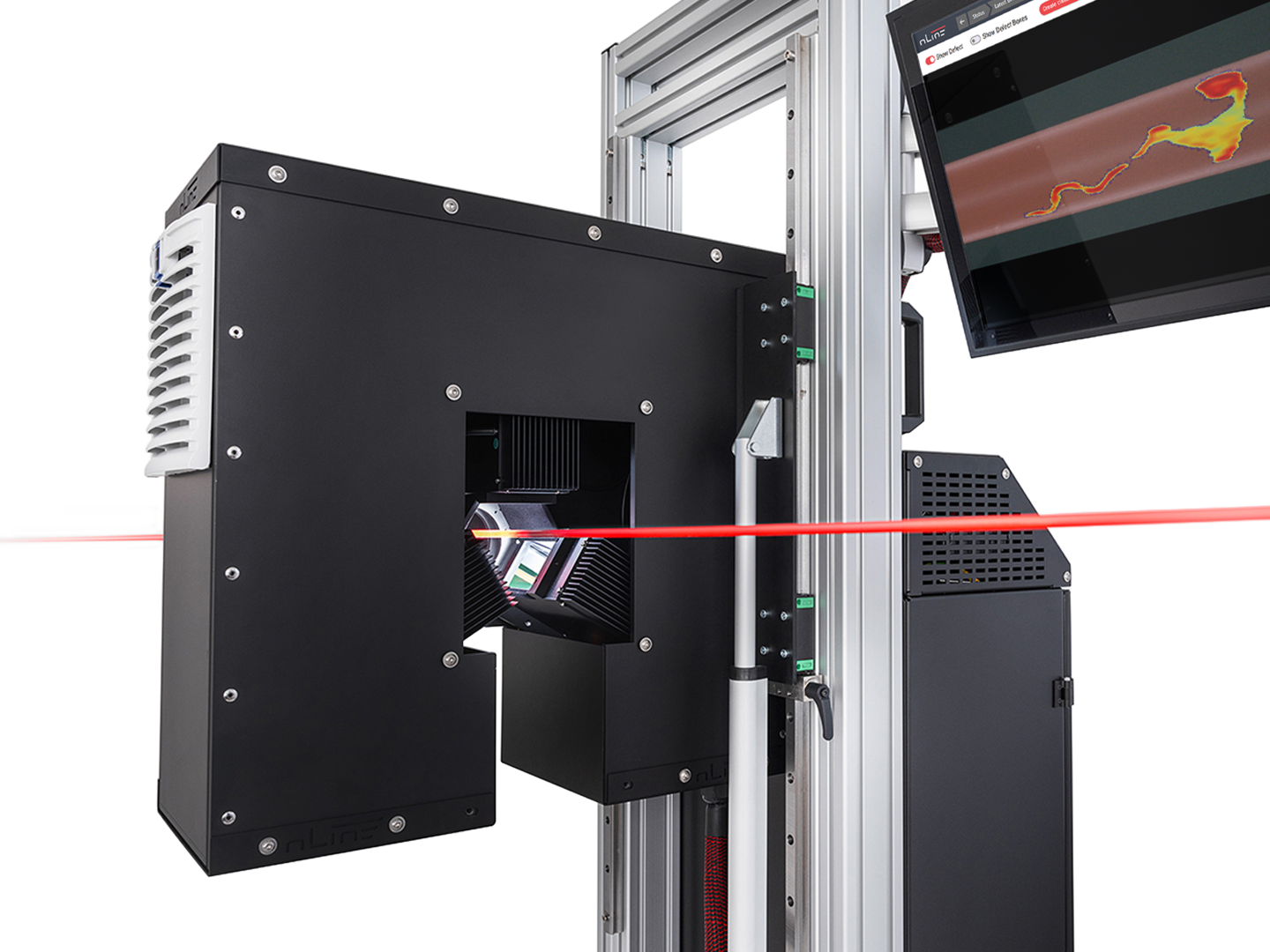

The Latest Generation of Optical Inspection for Tube-Shaped-Products
The nLine inspection solution analyzes a wide variety of product and quality characteristics inline during ongoing production or in individual inspection.

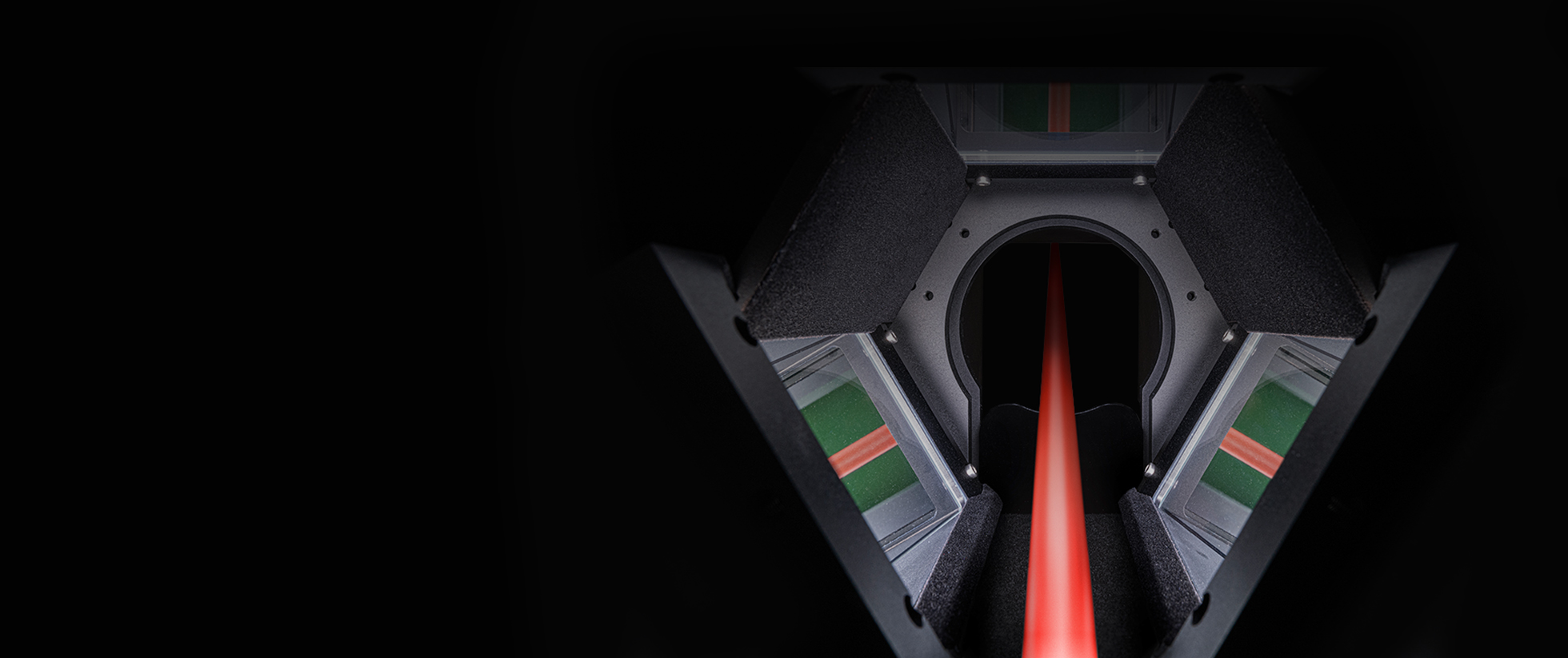

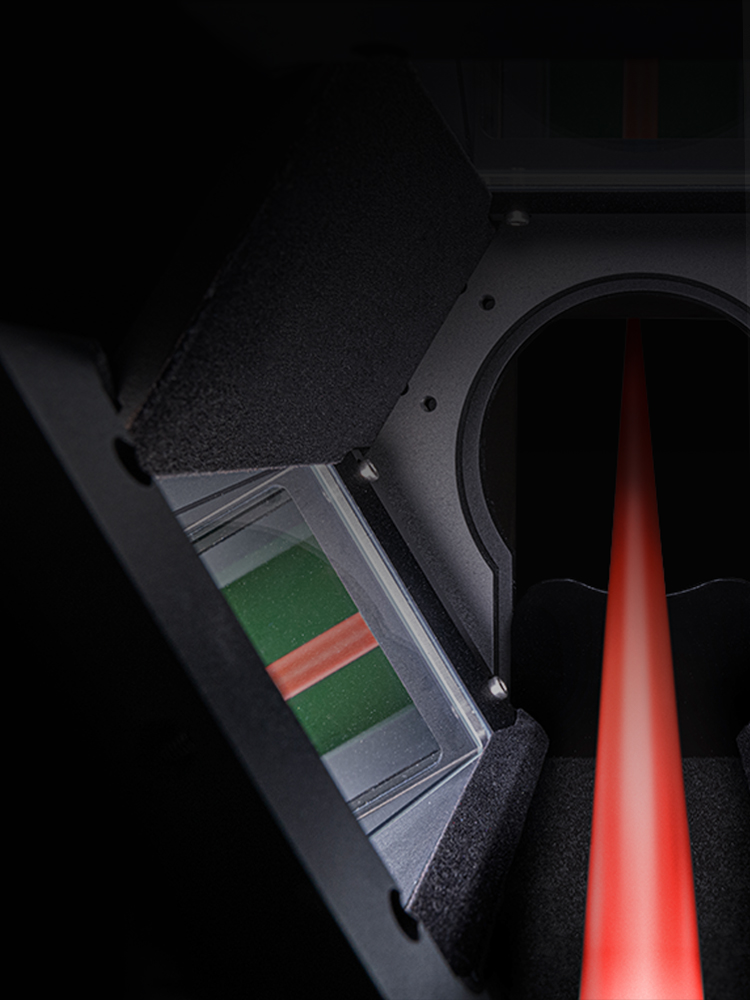

Three high-speed cameras monitor the complete cable surface over the entire cable length continuously. Deviations are signaled and documented.
The system is available in different versions and can be adapted to a wide range of requirements.
The analysis and evaluation is performed on-the-edge, without connection to a cloud, for the highest performance, lowest latencies and best data security.
The commissioning does not require any technical knowledge. Product features are simply trained according to the "Teach & Go" principle by using a master sample.
Highlights
AI Processing
On-The-Edge
no cloud connection needed
Remote Operation
user interface for Windows & Linux workstations available
Low Maintenance
no moving parts; occasional cleaning
Production Speed | Diamter
up to 350m/min at a product diameter of 0,4 - 3,5mm (depending on configuration)
Operating Temperature
from 5°-46°C
air humidity 0-90%
Process Reliability
insensitive to water drops and dust particles on the cable surface
24/7 Continous Operation
> 99,5% availability
Train with Gold-Samples
define your perfect state
Networkable
recipes available remotely
IO | Interfaces
analog & digital signaling
Functionality of the nLine Inspection Solution
Challenge
The increasing demands on the already high quality standards, e.g. as demanded by the automobile industry, pose problems for error detection by means of conventional measuring and testing technology. In addition, requirements such as 100% control and traceability have to be fulfilled versions and can be adapted to a wide range of requirements.
Our Solution

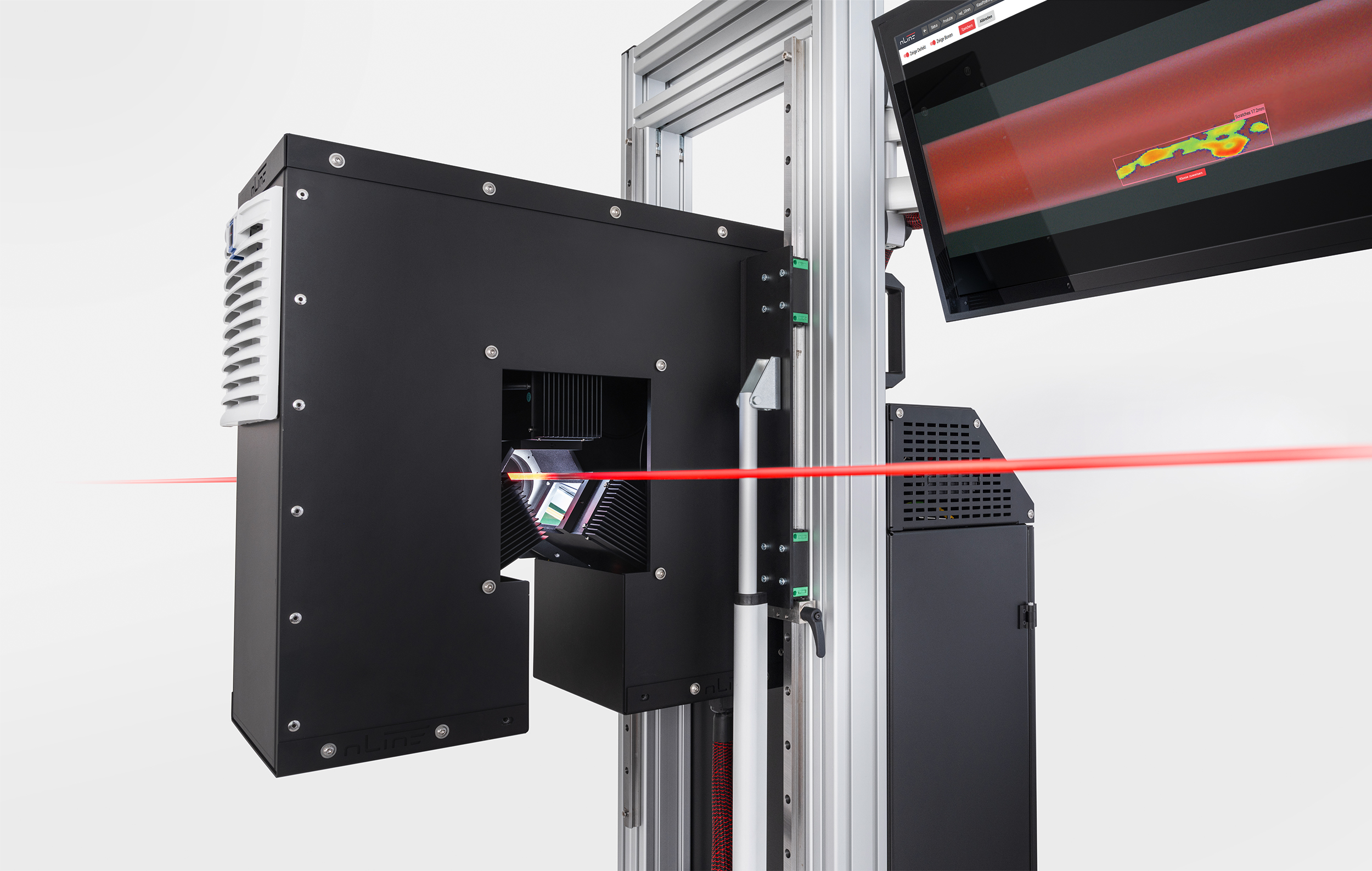

The nLine 360 inspection solution was developed specifically for the extrusion industry and enables the inspection of many different product features in a single compact device. Thereby it replaces the existing measuring and testing technology, which reduces investment and maintenance costs as well as integration efforts. Three high-speed cameras continuously monitor the complete cable surface over the entire cable length.
Easy integration also into existing system concepts

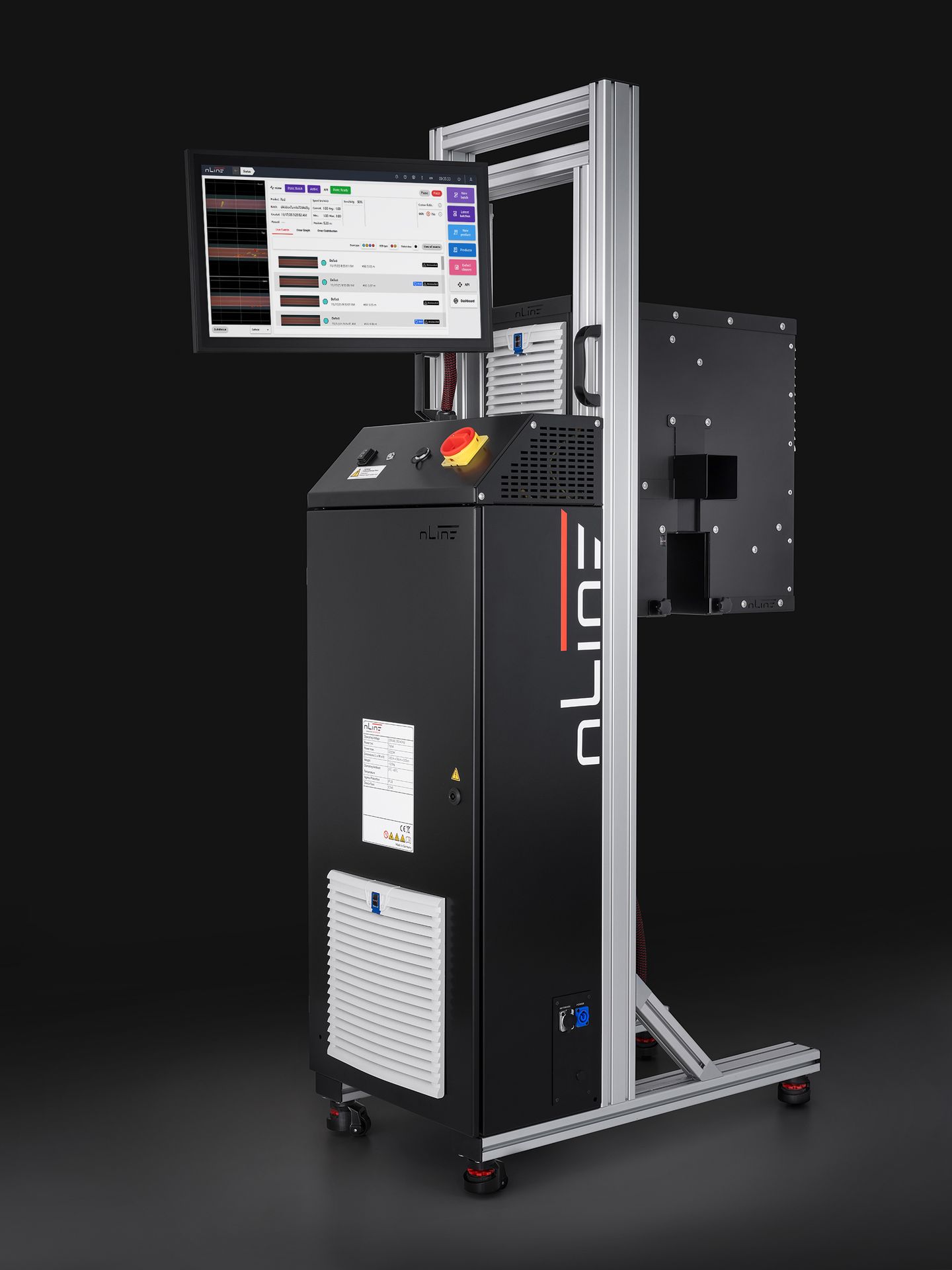

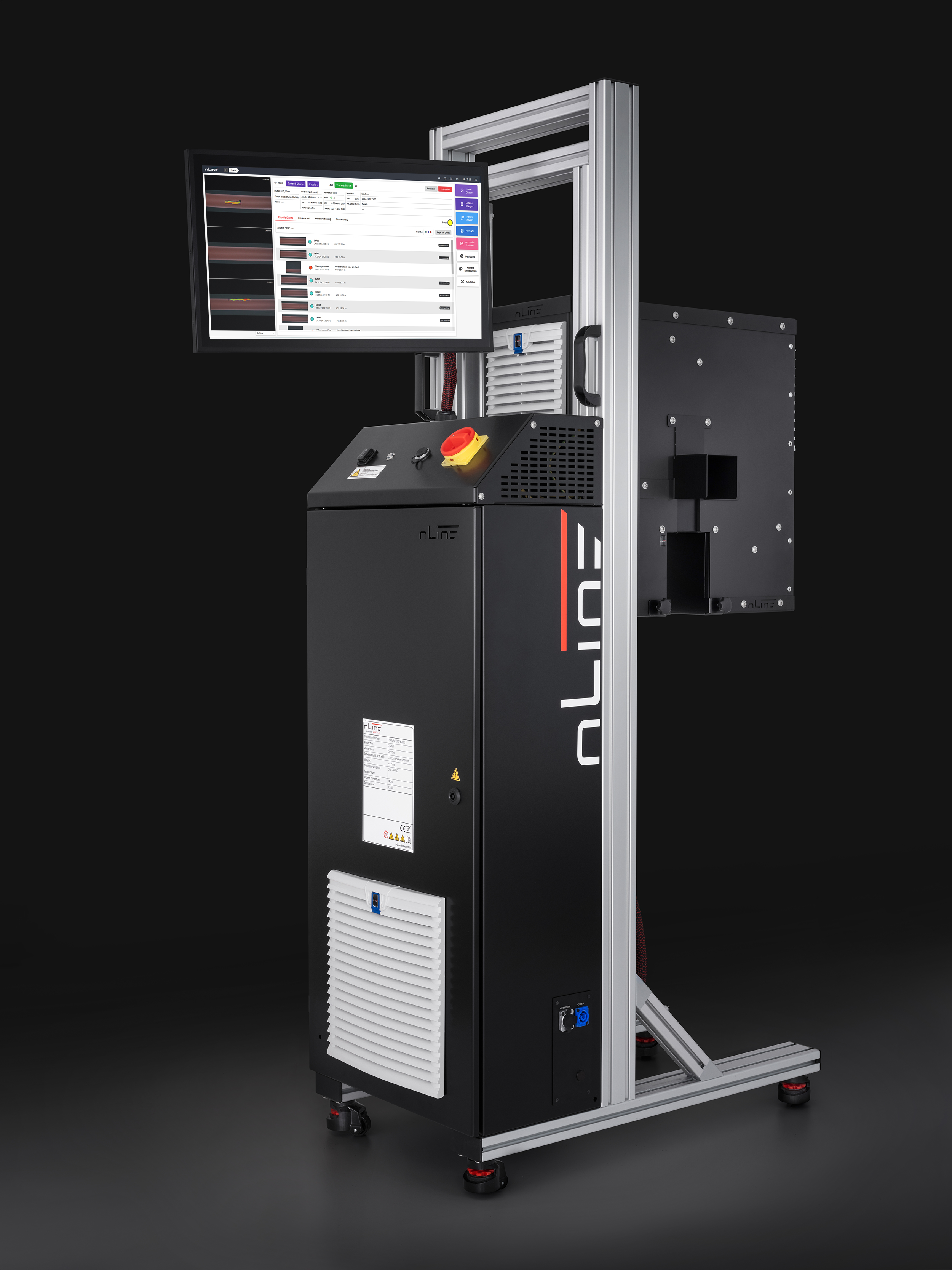

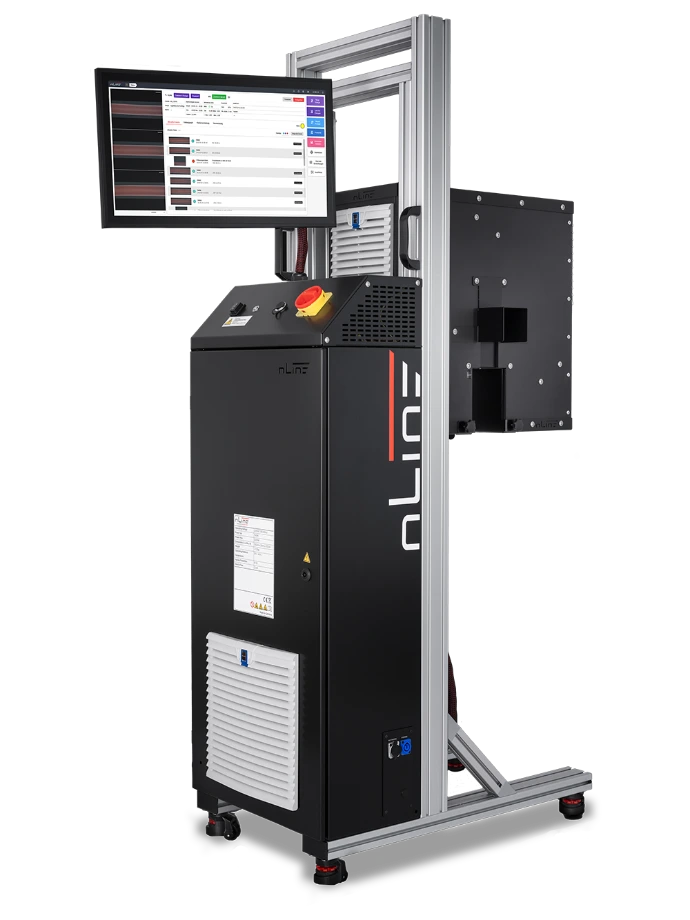

nLine can be integrated into existing system concepts. As a mobile version mounted on a height-adjustable rolling frame or as a compact, stationary version (fixed installation). The uncomplicated commissioning requires little technical know-how. Numerous interfaces and industry standards, such as OPC UA, allow easy integration into existing system concepts while ensuring minimal latencies. Signals, e.g. for the control of signal transmitters, can be directly output via an analog signal. This simplifies the programming of system controls and complex cabling.
Teach & Go within Minutes
Teaching
Inspection
